Card creasing/folding punch (02/03/12)

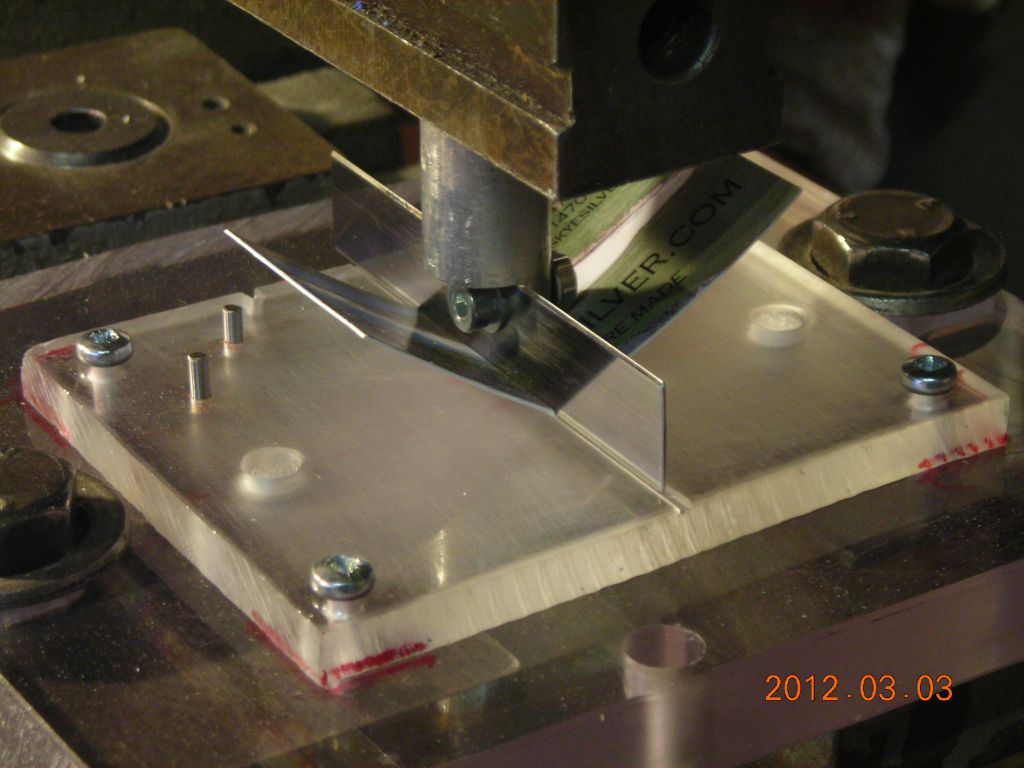

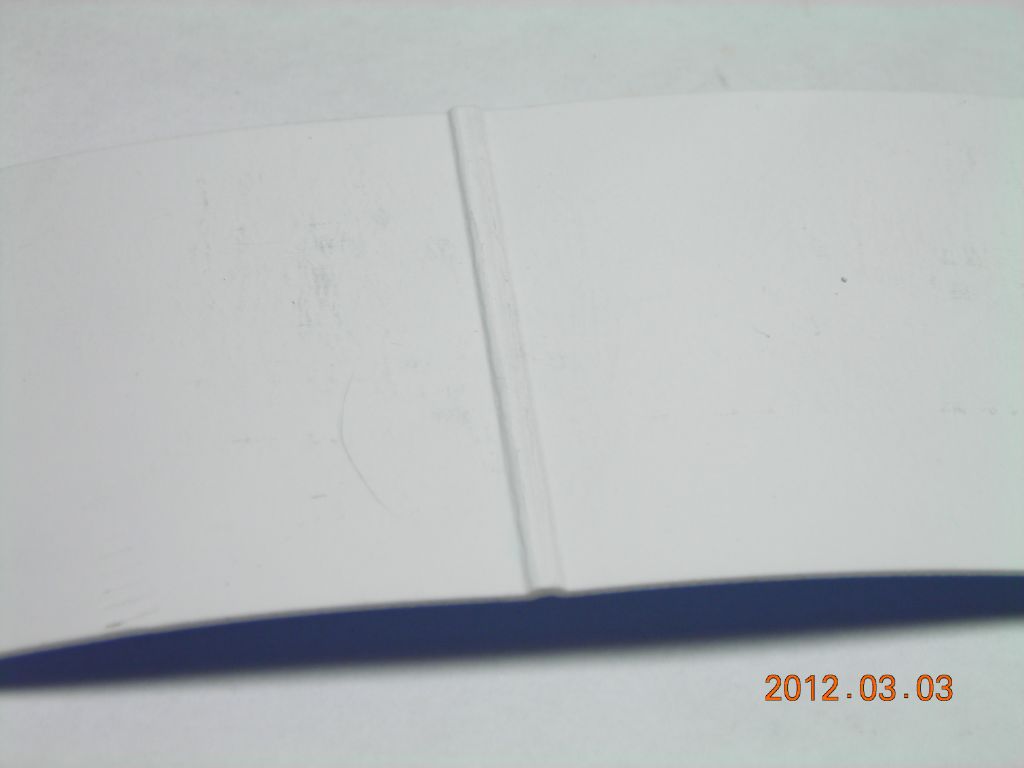

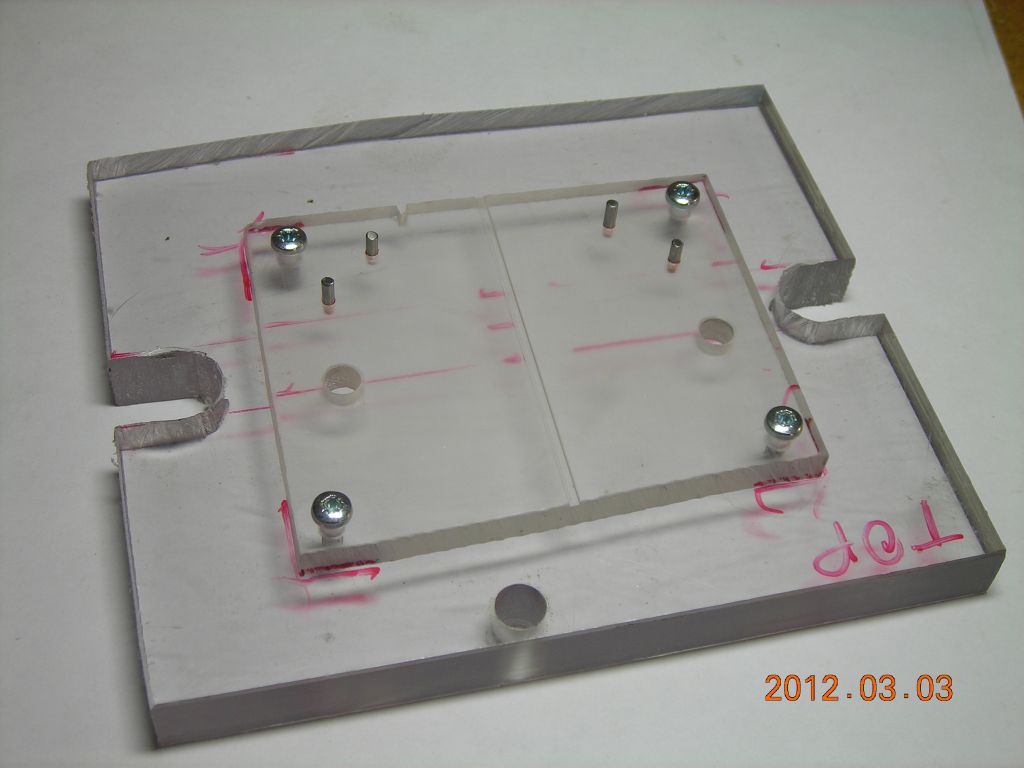

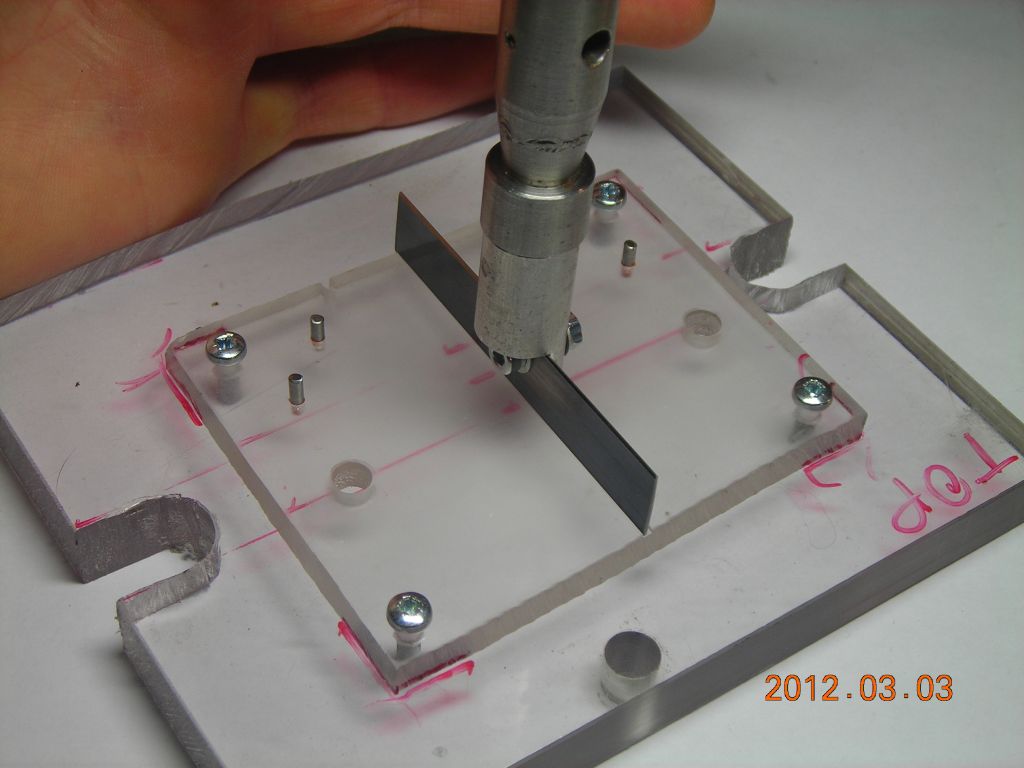

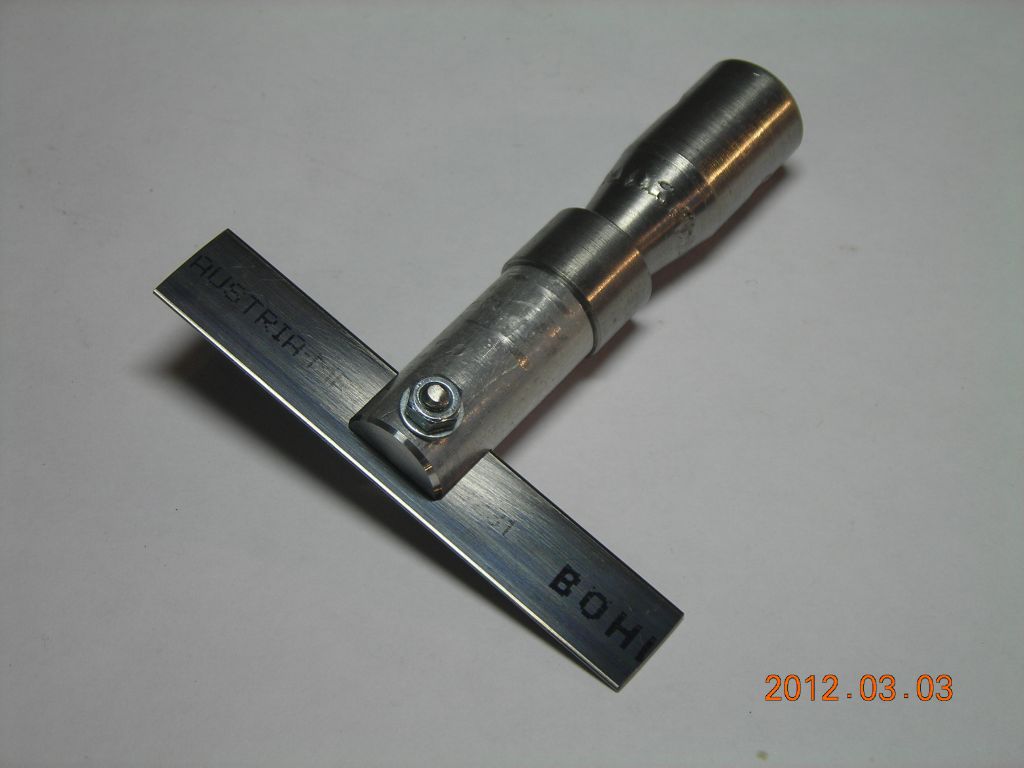

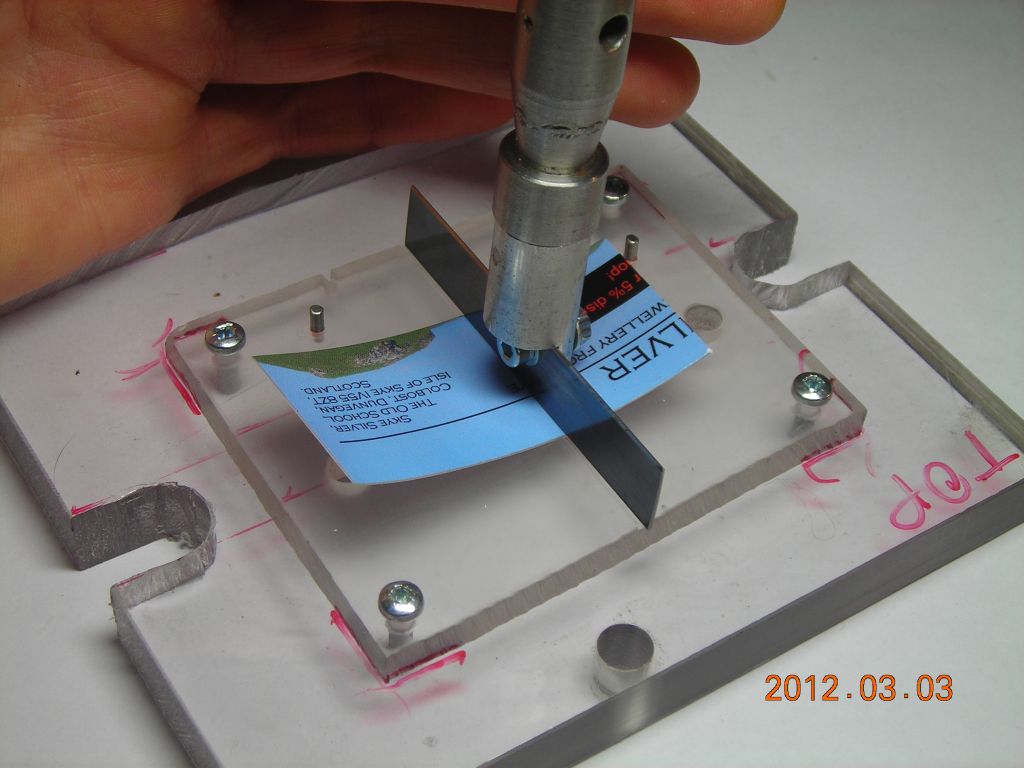

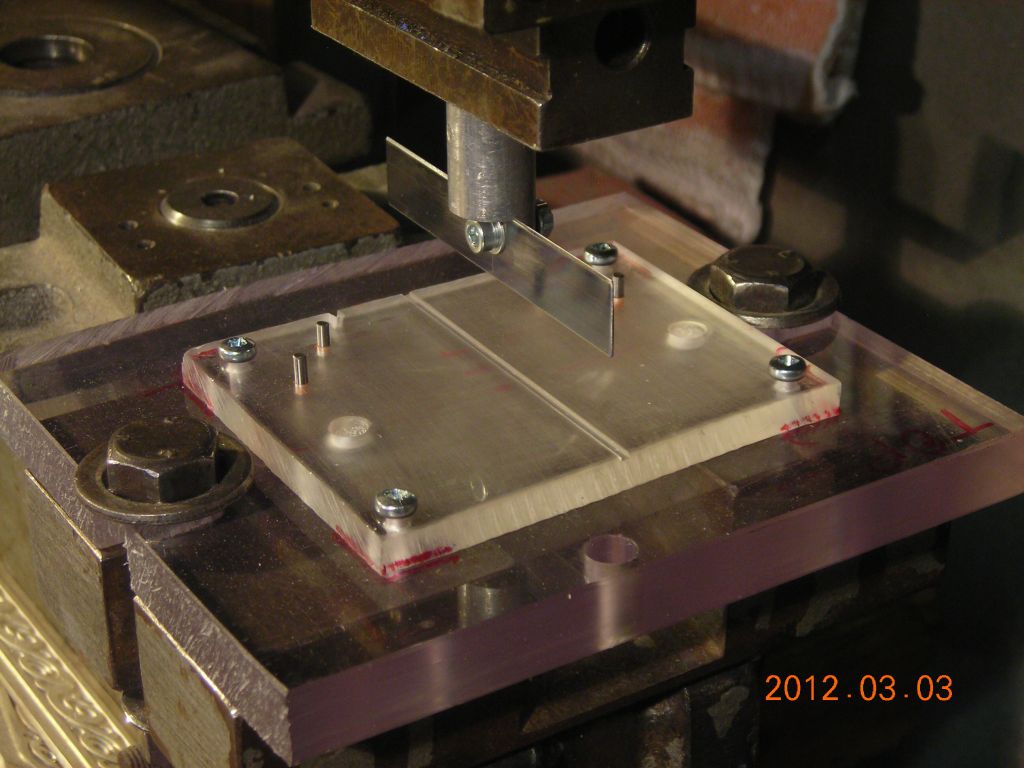

We use a lot of little display cards in the shop and needed a nicer way of folding them than simply folding them by hand, which produces a very rough fold. Here's the answer - a creasing die based on what's used commercially.
